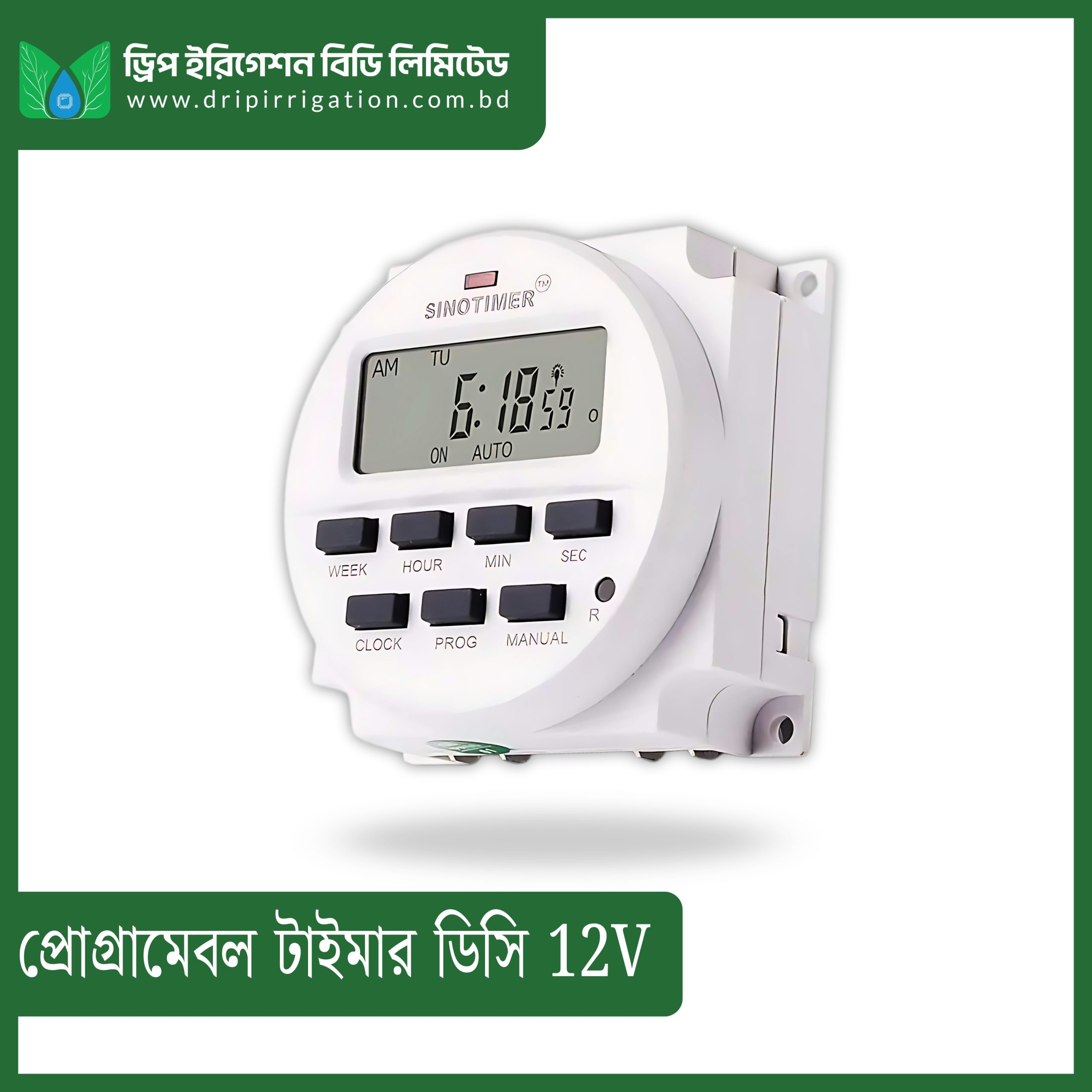

Programmable Timer 16 off + 16 on for each day Weekly SINOTIMER® 12v with 4 wires

Add to wishlistAdded to wishlistRemoved from wishlist 0

Programmable Timer 16 off + 16 on for each day Weekly SINOTIMER® 12v with 4 wires

৳ 1,000.00

40 in stock

বিস্তারিত জানতে মেসেজ করুন
Category: Tag:

CN101A首页

CN101A应用图

Functions:

1.Clock display(12hr/24hr format)

2.Timer

3.Countdown
Features:​​​

1.Easy to read LCD display, LED indicators.

2.16 ON/OFF programs per day, 15 combinations to a week.

3.24 hours / 7 days a week programmable.

4.Countdown function. Max 24 hours countdown to OFF.

5.Built-in rechargeable battery for backup the memory (save the programs you set)when power failure.

6.Repeat programs with 16 on/off settings, and setting on/off manually.

7.Ideal for household use in pannel mounted.

参数

  Brand​​​

  SINOTIMER

  Model number

  CN101A

  Power supply

  5V,12V,24V,110V,220V       50/60Hz

  Capacity

  Resistive 16AMP,Inductive 8AMP

  Min interval

  1 minute

  Timing range

  1 minute to 168 hours

  Setting groups

  16 ON/OFF per day

  Programs

  15 Groups

  Black-out

  60 days

  Power comsumption

  <5VA

  Average error

  <± 2 sec/day

  Battery type

  1.2V,inside,rechargeable

  Installation

  Pannel/wall mounted

CN101A尺寸接线图

Package includes:

1* Timer Switch CN101A

1* Manual in Russian,Portuguese and English language

Note: The Instructions Manual is in Russian, Portuguese and English language.
CN101A细节1CN101A细节2CN101S细节3
CN101S设置步骤

1.Adjustment of the preset time

Steps

Operation
States
1
Press Clock and H+ together
Adjustment of the preset hour
2
Press Clock and M+ together
Adjustment of the preset minute
3
Press Clock and D+ together
Adjustment of the preset day

Hold S+ and M+ over 3 seconds ,it can shift from 24hr to 12hr format

2.Timer setting

Steps

Operation

States

1

Press P

Enter the 1st timer format (LCD displays 1ON)

2

Press H+ and M+ separately

Set 1st on time

3

Press D+

Set the days of 1 st on time,it can be set on same setting every day,different settings in a week.

4

Press P

LCD displays 1 OFF

5

Press H+ and M+ separately

Set 1st OFF time

6

Press D+

Set the day of 1st OFF day in a week

7

Repeat step 2-6

If necessary,it can set 2nd to 16 th ON/OFF

8

Press Clock

End

Cancel or recall the programs you set by pressing C/R button in programming status.

3.Countdown setting

Steps

Operation

States

1

Press Clock and P over 3 seconds together

Enter into countdown format

2

Press Clock and H+ or Clock and M+

Set the time value of countdown,the max setting range is 23hrs 59 mins

3

Press Manual

Start to countdown

4

Press P

Stop countdown,then back to the presetting countdown time,timer keeps OFF state.

5

Press Clock and P over 3seconds together at the window of countdown

Exit the countdown,back to clock format

why choose SINOTIMER(1)

1.SINOTIMER is not only an amazing brand since 2002 but  a symbol of power saver.

2.Full range of timer choice,best seller in Europe,USA,Brazil etc.

3.Easy program,everyone can program it after reading the manual JUST one time.

4.Stable performance because of professional manufacturing in power saver since 2002.

5.Confirm to CE RoHS standard,and with LVD,EMC certificate passed.
