FarmHub IoT Controller
Original price was: ৳ 30,000.00.৳ 15,000.00Current price is: ৳ 15,000.00.
Experience the future of farming with the FarmHub IoT Controller, your all-in-one solution for smart irrigation and climate management.
DIBL Support Center
এই বিষয়ে বিস্তারিত জানতে আমাদের WhatsApp করুন
Description
Description
Commercial 220V AC irrigation controller featuring 4 AC outputs (max 1 HP each), 4 RJ45 sensor ports, 12 offline weekly timers, and cloud monitoring via my.senspanel.com.
Features

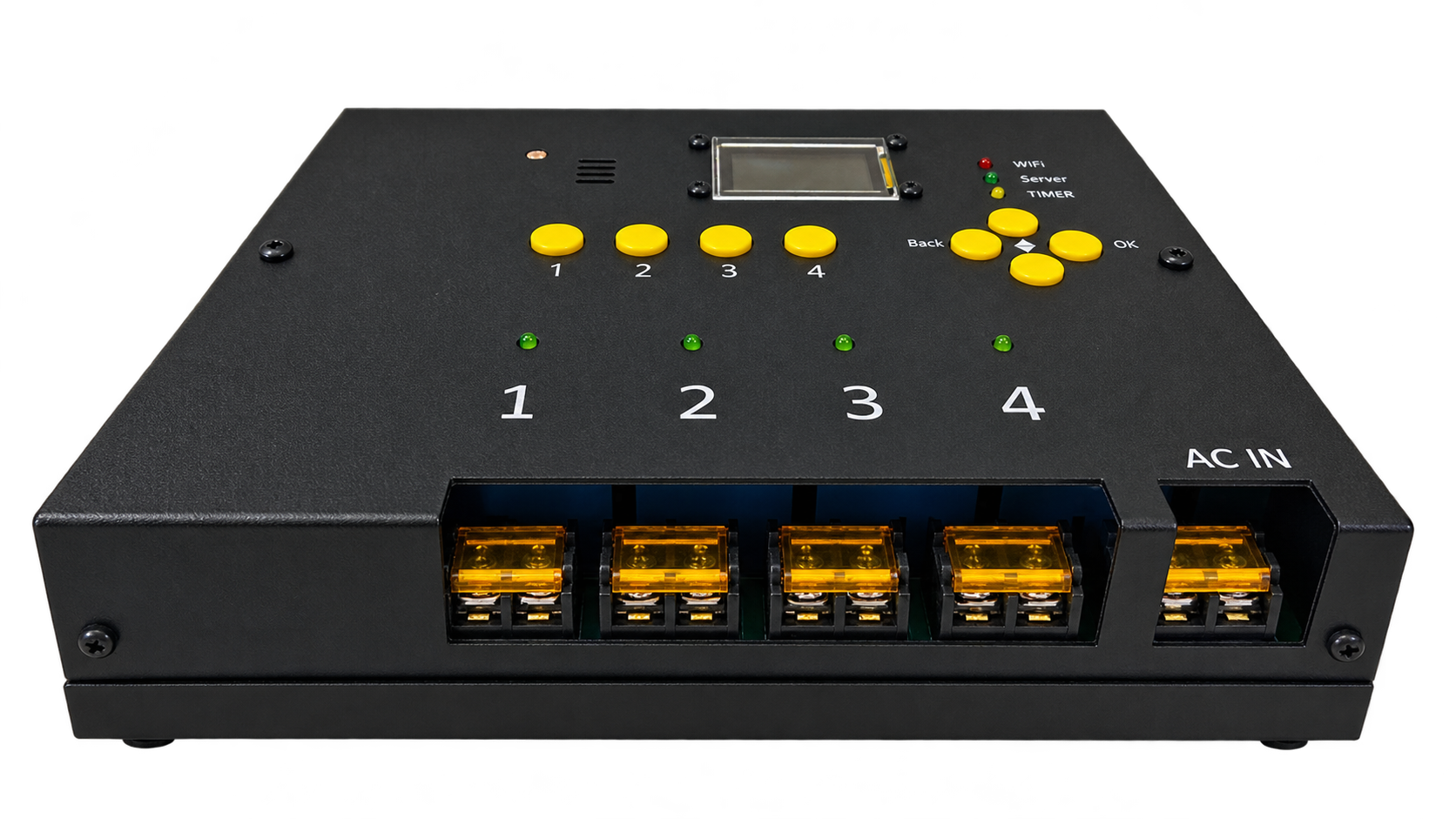

- 4 x 220V AC Outputs: Direct control for valves, pumps, and other 220V AC appliances up to 1 HP (use magnetic contactor for > 1 HP).

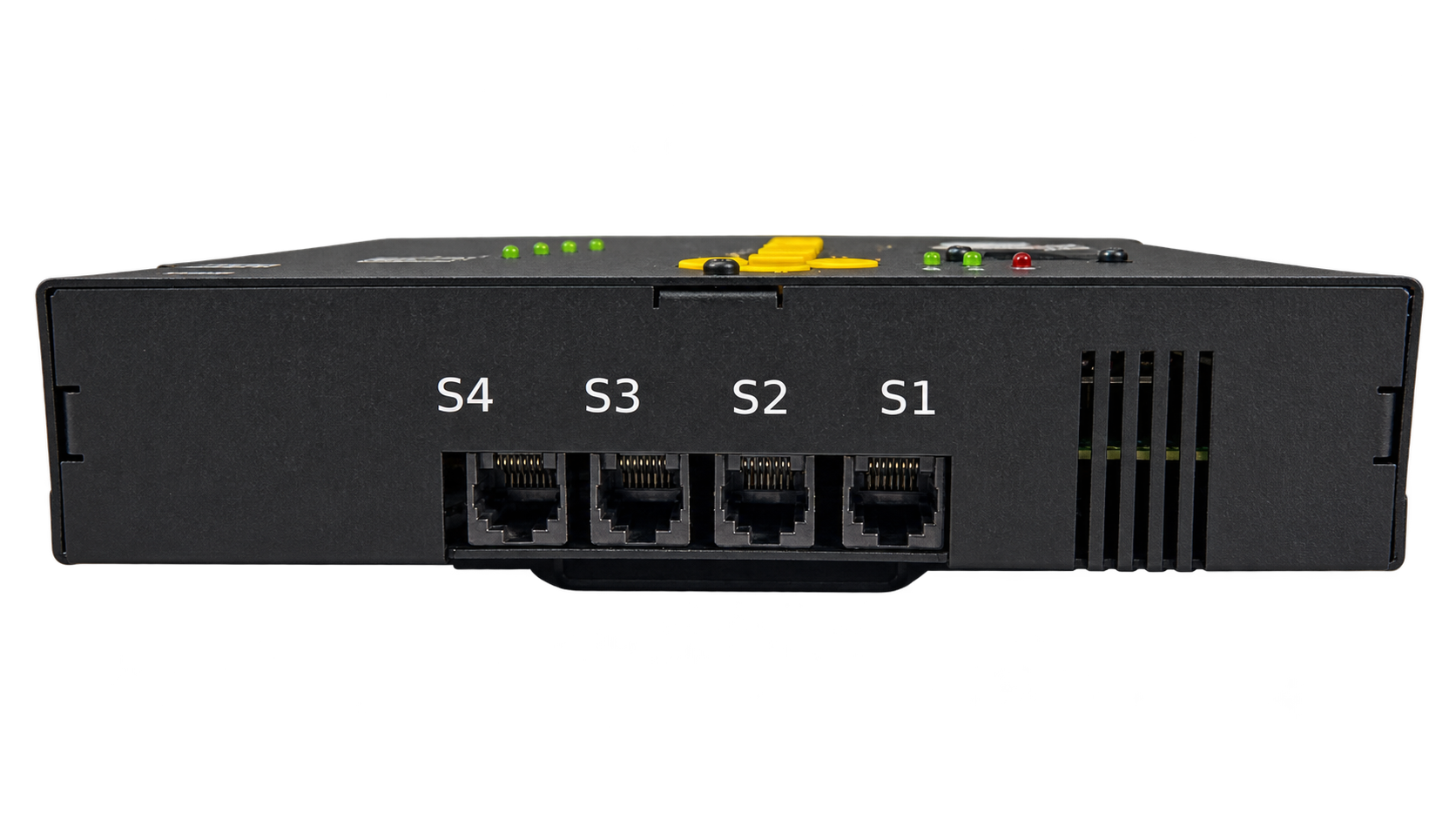

- 4 x RJ45 Sensor Ports: RJ45 plug-and-play support for soil moisture, temp/humidity, or 7-in-1 Soil Nutrition sensors.
- 12 Schedule Timers: Weekly scheduled output controls saved locally on the device.

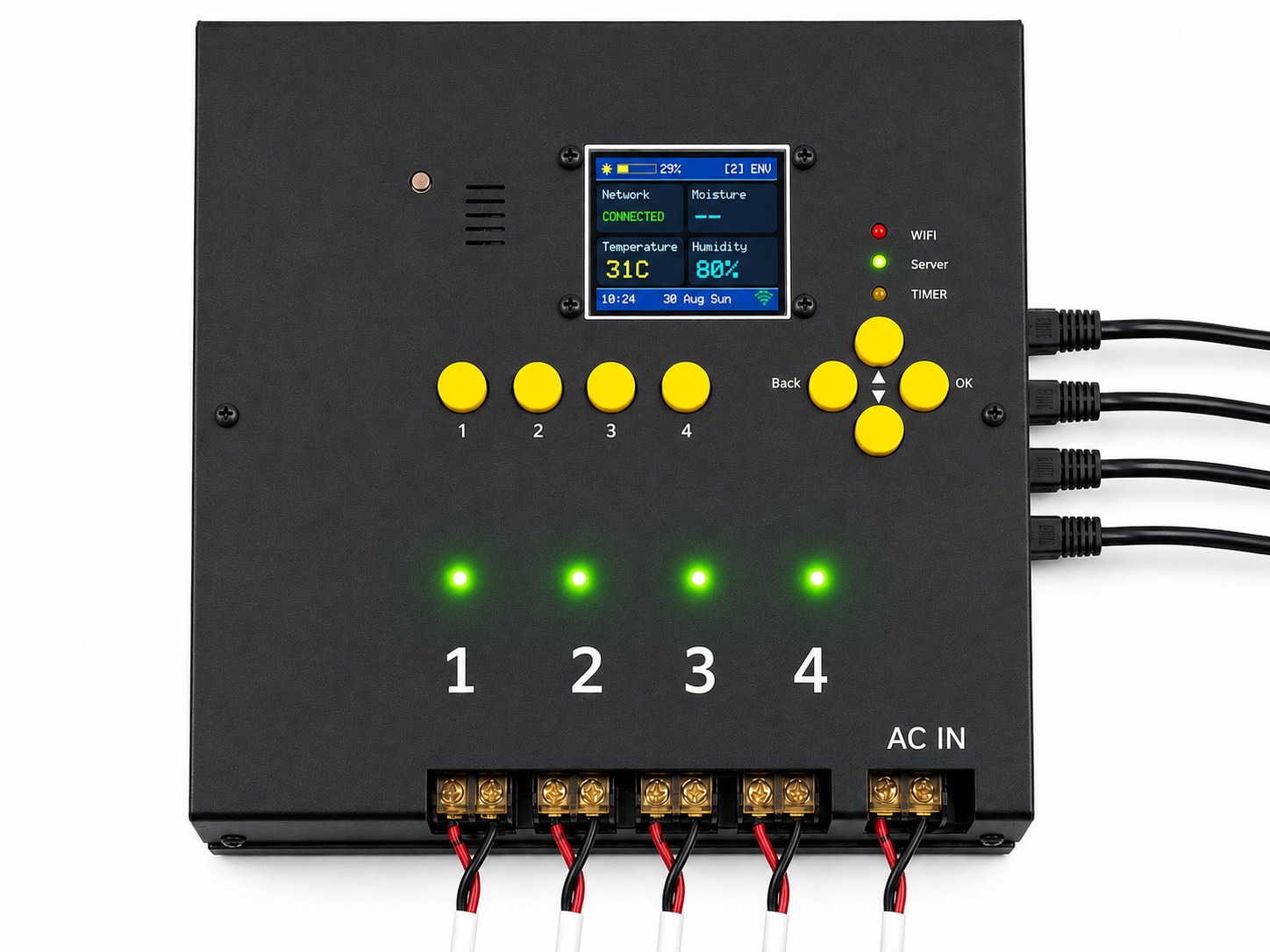

- Screen & Controls: Zonal status display with control and manual override buttons.

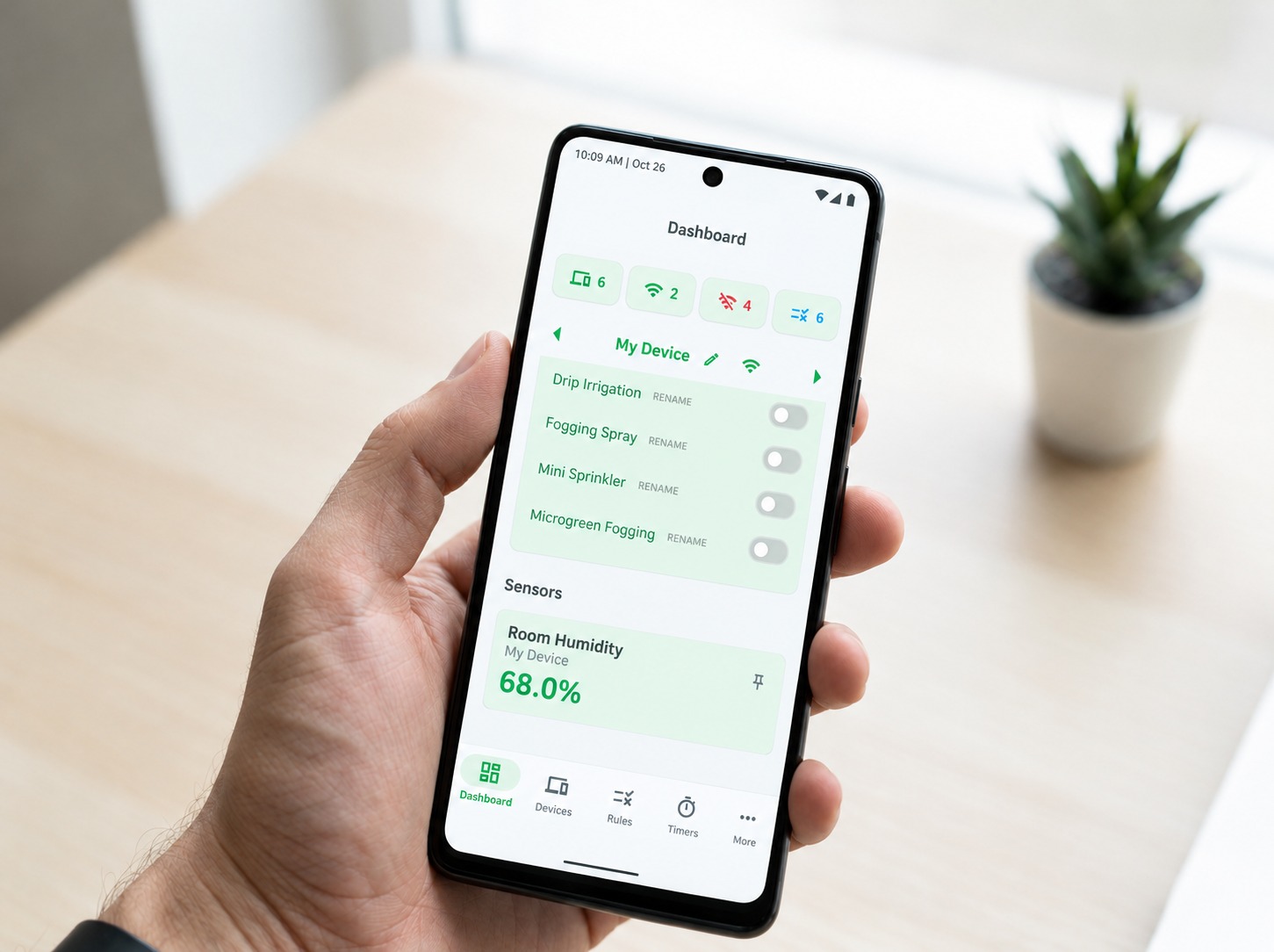

- my.senspanel.com Portal: Live telemetry dashboard, automated rule settings, and remote control capabilities.
- 6-Month Data Logging: Continuous telemetry recording with instant CSV file export for data analysis.
Specifications
| Parameter | Details |
| Model | FarmHub v1.3.0 |
| Input Voltage | 220V AC Mains (AC IN terminal, 50Hz) |
| Relay Outputs | 4 channels (220V AC terminals 1–4) |
| Power Wire Gauge | 10 AWG recommended |
| Max Output Load | AC 220V, Max 1 HP per channel (contactor for > 1 HP) |
| Sensor Ports | 4x RJ45 sockets (S1–S4, custom sensors with CAT6 cable) |
| Sensor Cable Range | Up to 20m (Moisture, Temp/RH); up to 1,000m (7-in-1 NPK) |
| Built-in Sensors | Ambient Light Level, Temperature (°C/°F), Humidity (%RH) |
| Display & Controls | Zonal LCD screen, Control buttons, 4 output buttons |
| Status LEDs | Power/Wi-Fi (Red), Server (Green), Timer (Orange) + 4 output LEDs (Green) |
| Wireless | Wi-Fi 2.4 GHz |
| Operating Temp | -25°C to +70°C |
| Operating Humidity | Device: 45%–80% RH | External Sensors: 0%–100% RH |
| Cloud Platform | my.senspanel.com (remote control, rules, CSV export) |
