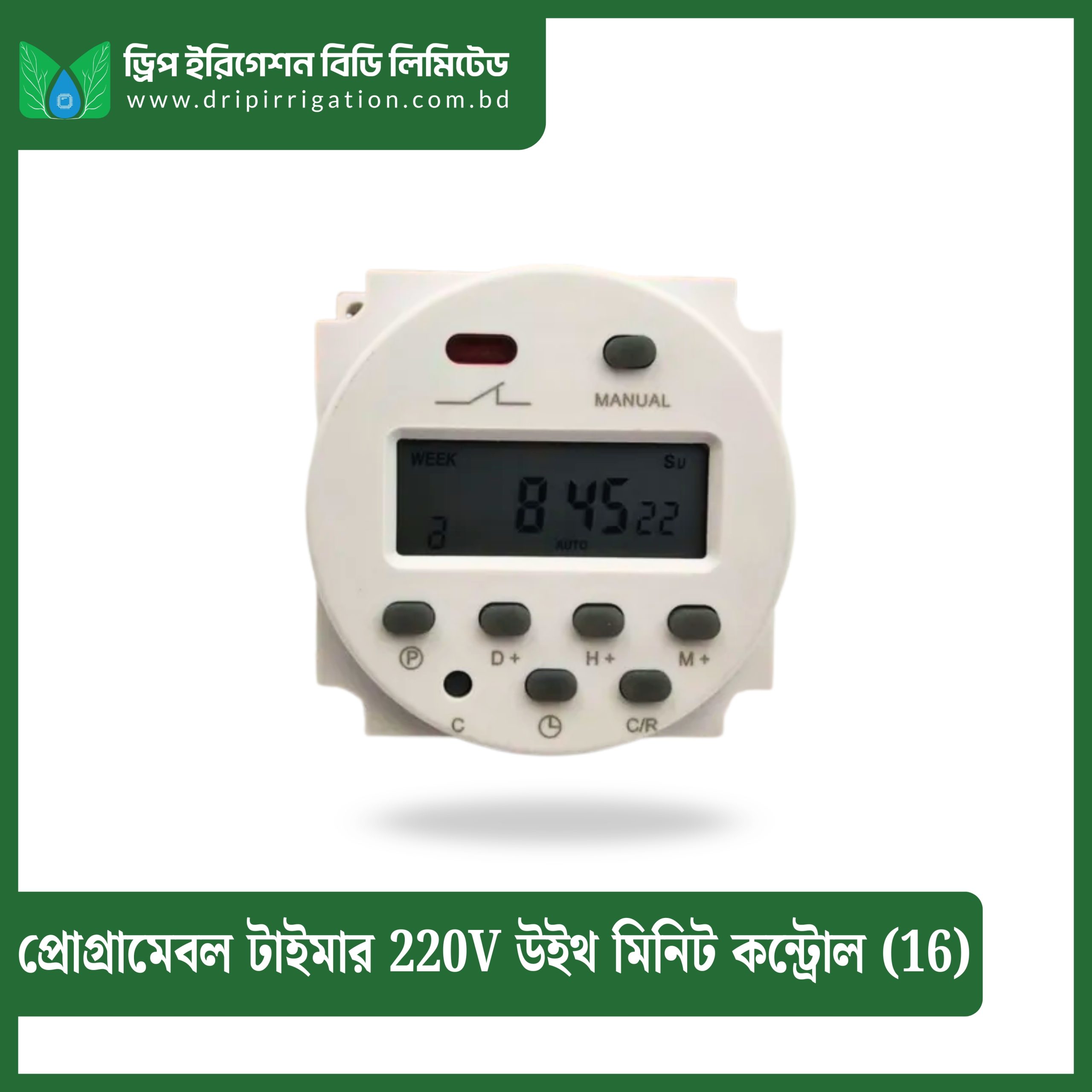

Programmable Timer 220V
৳ 1,000.00

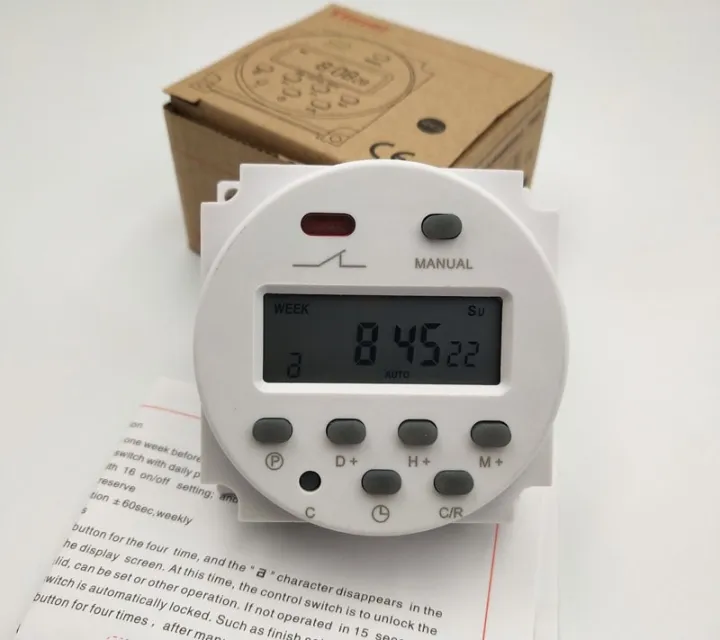

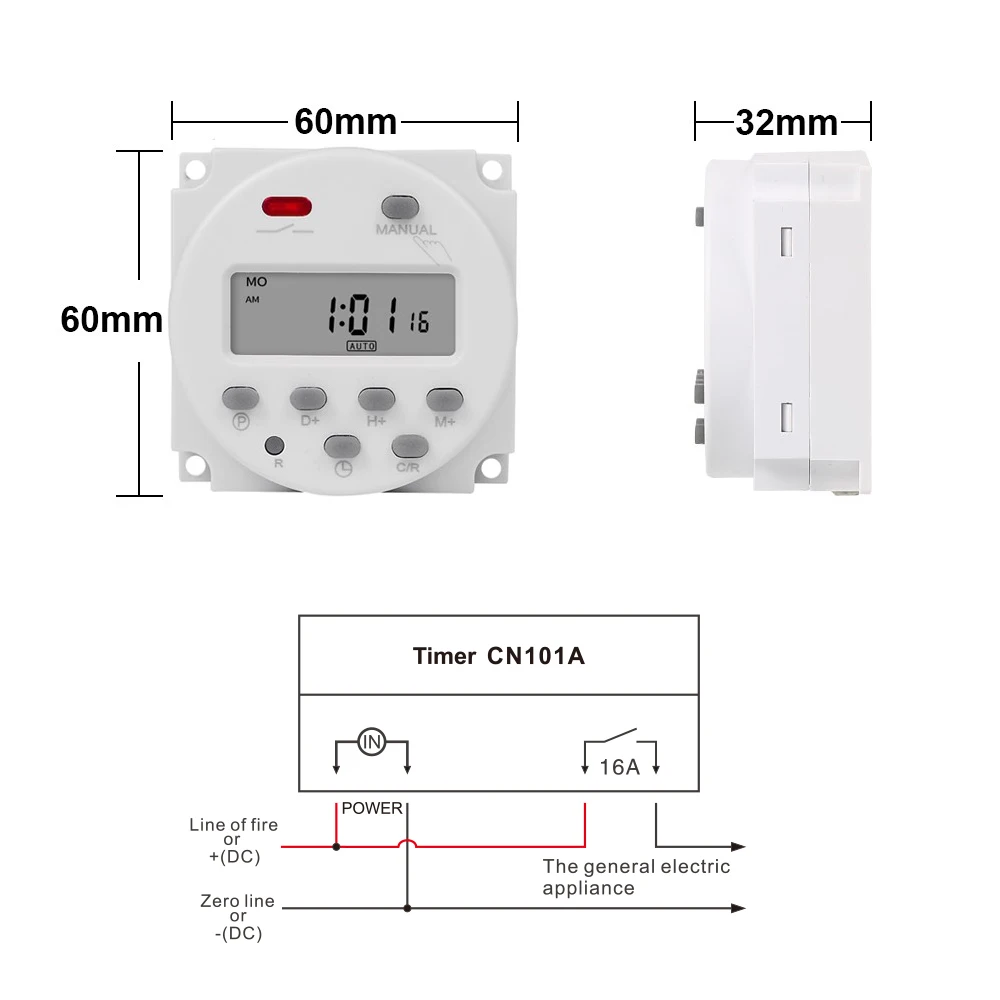

Programmable Timer 16 off + 16 on for each day Weekly SINOTIMER® 220v with 4 wires
58 in stock
Description
Functions: 1.Clock display(12hr/24hr format) 2.Timer 3.Countdown
Features: 1.Easy to read LCD display, LED indicators. 2.16 ON/OFF programs per day, 15 combinations to a week. 3.24 hours / 7 days a week programmable. 4.Countdown function. Max 24 hours countdown to OFF. 5.Built-in rechargeable battery for backup the memory (save the programs you set)when power failure. 6.Repeat programs with 16 on/off settings, and setting on/off manually. 7.Ideal for household use in pannel mounted.
|
Brand |
SINOTIMER |
|
Model number |

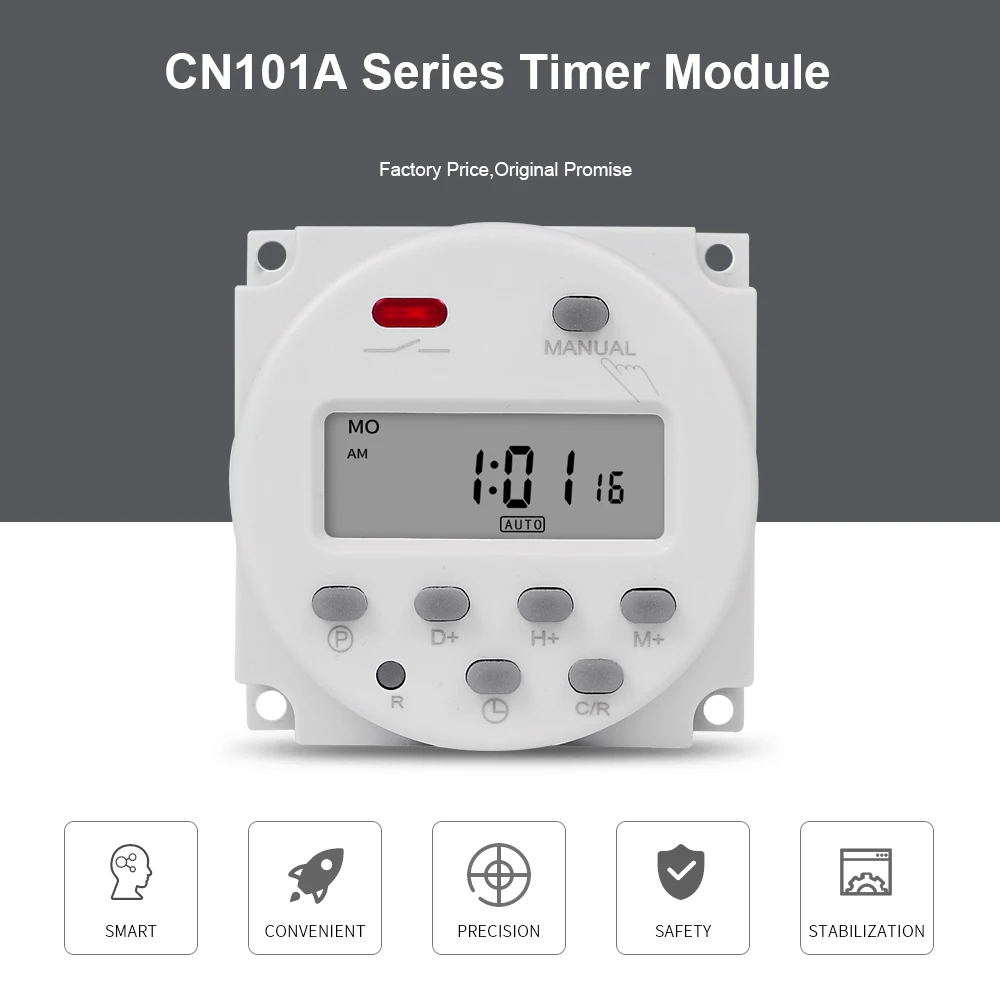

CN101A |
|
Power supply |
5V,12V,24V,110V,220V 50/60Hz |
|
Capacity |
Resistive 16AMP,Inductive 8AMP |
|
Min interval |
1 minute |
|
Timing range |
1 minute to 168 hours |
|
Setting groups |
16 ON/OFF per day |
|
Programs |
15 Groups |
|
Black-out |
60 days |
|
Power comsumption |
<5VA |
|
Average error |
<± 2 sec/day |
|
Battery type |
1.2V,inside,rechargeable |
|
Installation |
Pannel/wall mounted |
Package includes:
1* Timer Switch CN101A 1* Manual in Russian,Portuguese and English language Note: The Instructions Manual is in Russian, Portuguese and English language.
1.Adjustment of the preset time
|
Steps
|
Operation
|
States
|
1
|
Press Clock and H+ together
|
Adjustment of the preset hour
|
2
|
Press Clock and M+ together
|
Adjustment of the preset minute
|
3
|
Press Clock and D+ together
|
Adjustment of the preset day
|
Hold S+ and M+ over 3 seconds ,it can shift from 24hr to 12hr format
2.Timer setting
|
Steps |
Operation |
States |
|
1 |
Press P |
Enter the 1st timer format (LCD displays 1ON) |
|
2 |
Press H+ and M+ separately |
Set 1st on time |
|
3 |
Press D+ |
Set the days of 1 st on time,it can be set on same setting every day,different settings in a week. |
|
4 |
Press P |
LCD displays 1 OFF |
|
5 |
Press H+ and M+ separately |
Set 1st OFF time |
|
6 |
Press D+ |
Set the day of 1st OFF day in a week |
|
7 |
Repeat step 2-6 |
If necessary,it can set 2nd to 16 th ON/OFF |
|
8 |
Press Clock |
End |
Cancel or recall the programs you set by pressing C/R button in programming status.
3.Countdown setting
|
Steps |
Operation |
States |
|
1 |
Press Clock and P over 3 seconds together |
Enter into countdown format |
|
2 |
Press Clock and H+ or Clock and M+ |
Set the time value of countdown,the max setting range is 23hrs 59 mins |
|
3 |
Press Manual |
Start to countdown |
|
4 |
Press P |
Stop countdown,then back to the presetting countdown time,timer keeps OFF state. |
|
5 |
Press Clock and P over 3seconds together at the window of countdown |
Exit the countdown,back to clock format |

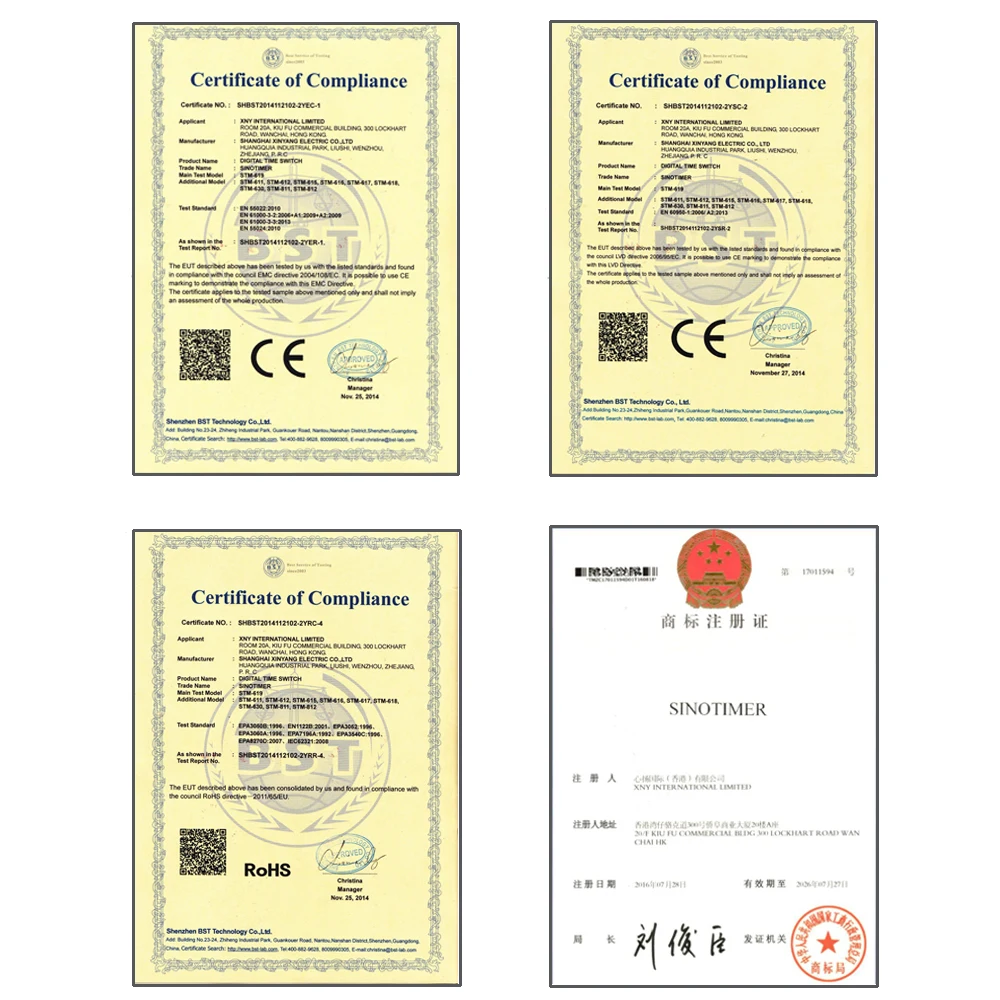

1.SINOTIMER is not only an amazing brand since 2002 but a symbol of power saver. 2.Full range of timer choice,best seller in Europe,USA,Brazil etc. 3.Easy program,everyone can program it after reading the manual JUST one time. 4.Stable performance because of professional manufacturing in power saver since 2002. 5.Confirm to CE RoHS standard,and with LVD,EMC certificate passed.
